What Is a Pneumatic Angle Seat Valve and How Does It Work?

Pneumatic Angle Seat Valve is a widely used industrial valve designed for controlling the flow of liquids, gases, steam and other media. With a compact structure, fast switching speed and reliable sealing performance, it is commonly used in industrial automation, textile dyeing, food processing, pharmaceutical equipment, water treatment and other applications.

As a professional pneumatic valve manufacturer, MTV provides pneumatic angle seat valves in different connection types, sizes and sealing materials to meet various industrial flow control requirements.

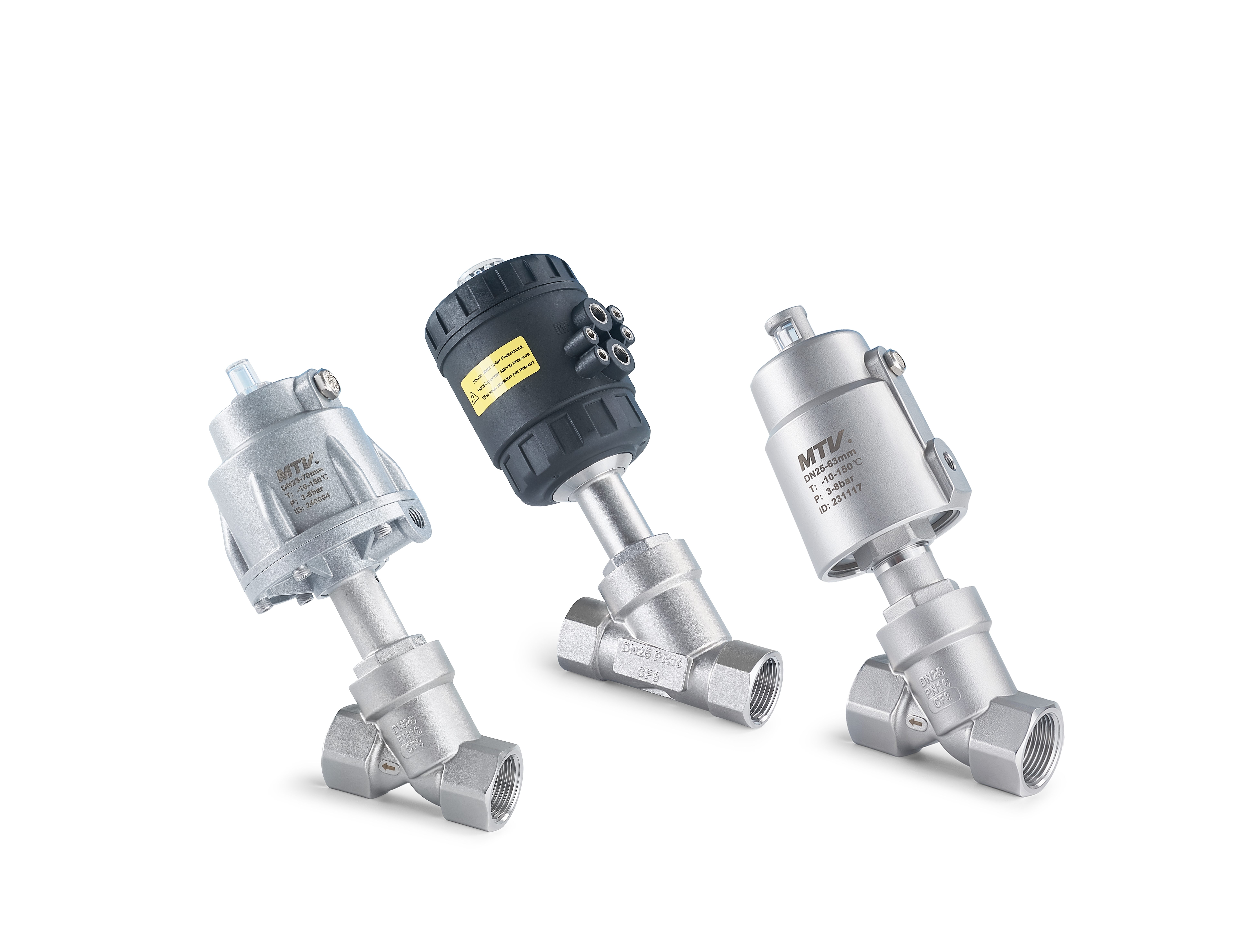

A pneumatic angle seat valve is a pneumatically operated valve in which the valve body is designed with an angled flow path, typically around 90 degrees between the inlet and outlet.

The valve is operated by a pneumatic actuator. When compressed air is supplied to the actuator, the piston moves the valve stem to open or close the valve.

Compared with some conventional valves, the angled body design provides a relatively high flow capacity while maintaining a compact structure.

The working principle is relatively simple.

When compressed air enters the pneumatic actuator, it drives the piston and valve stem. The stem then moves the valve disc away from or toward the valve seat.

• Valve open: The actuator moves the stem away from the seat, allowing the medium to flow.
• Valve closed: The stem presses the sealing element against the valve seat, stopping the flow.
• Normally Closed (NC): The valve remains closed when there is no control air.
• Normally Open (NO): The valve remains open when there is no control air.

The actuator can be configured according to the required operating mode and application.

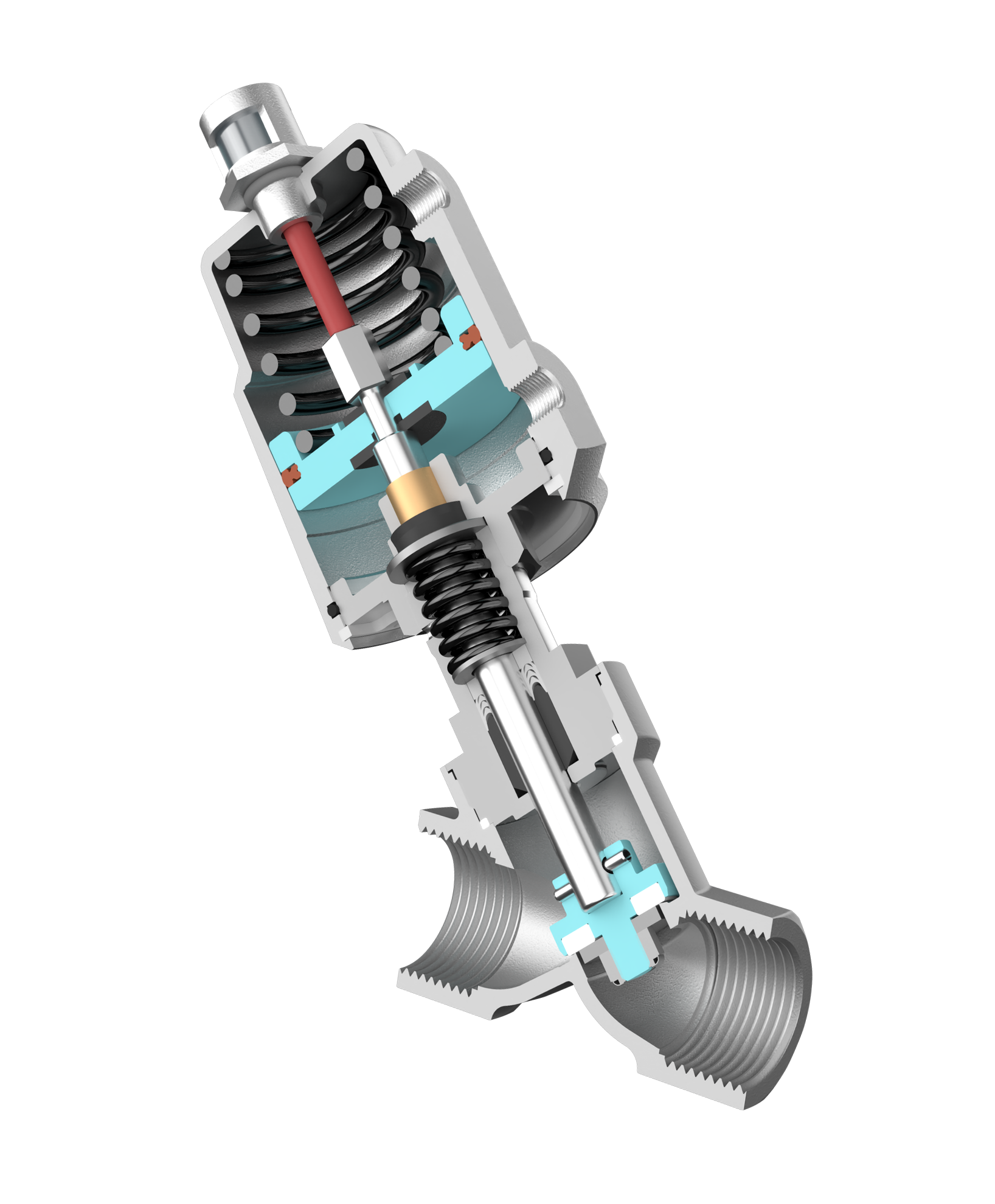

A typical pneumatic angle seat valve consists of several key components:

1. Valve Body
The valve body forms the main flow passage and is commonly manufactured from stainless steel such as CF8 or CF8M.

2. Pneumatic Actuator
The actuator converts compressed-air energy into mechanical movement to operate the valve.

3. Valve Stem
The stem transfers the movement of the actuator to the valve disc.

4. Valve Seat and Seal
Different sealing materials, such as PTFE, EPDM, FKM and other options, can be selected according to the working medium and temperature.

5. Connection
Depending on the application, angle seat valves can be supplied with threaded, welded, flanged or sanitary connections.

Pneumatic angle seat valves are widely selected for automated industrial systems because of several practical advantages:

• Fast switching speed for automated processes
• High flow capacity with an optimized angle body design
• Compact construction for space-limited installations
• Good sealing performance
• Long service life under suitable operating conditions
• Suitable for frequent operation
• Various seal and connection options
• Compatible with industrial automation systems

For applications requiring frequent opening and closing, pneumatic operation can also provide a reliable alternative to manual valve operation.

Pneumatic angle seat valves can be found in many industrial systems, including:

• Textile dyeing equipment
• Steam control systems
• Food and beverage processing
• Pharmaceutical equipment
• Water treatment systems
• Air and gas control
• Chemical processing
• Sterilization equipment
• Oxygen and nitrogen generation systems
• Industrial automation equipment

The appropriate valve configuration depends on factors such as the medium, pressure, temperature, flow rate, connection type and required switching frequency.

Before selecting an angle seat valve, several parameters should be considered:

Medium: Water, air, steam, gas, oil or other fluids.

Working pressure: The valve pressure rating should meet or exceed the actual system requirements.

Temperature: Select the appropriate sealing material according to the operating temperature.

Valve size: The correct DN size should be selected according to the required flow rate and pipeline size.

Connection: Threaded, welded, flanged or sanitary connections may be selected according to the installation.

Actuator function: Normally Closed, Normally Open or double-acting configurations can be selected according to the control system.

Choosing the correct configuration can help improve system reliability and extend the service life of the valve.
